| 性能數據 | 流量范圍 | 3-650m3/h |
| 揚程范圍 | 10-70m | |
| 介質溫度 | -20℃＜T＜+80℃ | |
| 環境溫度 | 不超過40℃ | |
| 最高工作壓力 | ≤1.6MPa | |
| 電機數據 | 配套功率 | 0.75-160KW |
| 電壓 | 380V | |
| 頻率 | 50-60HZ | |
| 轉數 | 1450/2900/r/min | |
| 防護等級 | IP54/IP55/IP65 | |
| 絕緣等級 | F | |
| 材料 | 泵體、泵蓋、葉輪 | 超高分子量聚乙烯 |
| 泵軸 | ||
| 機械密封 |

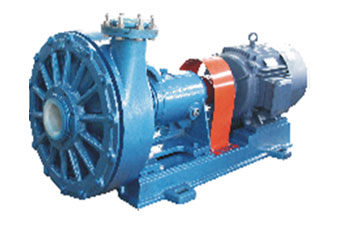

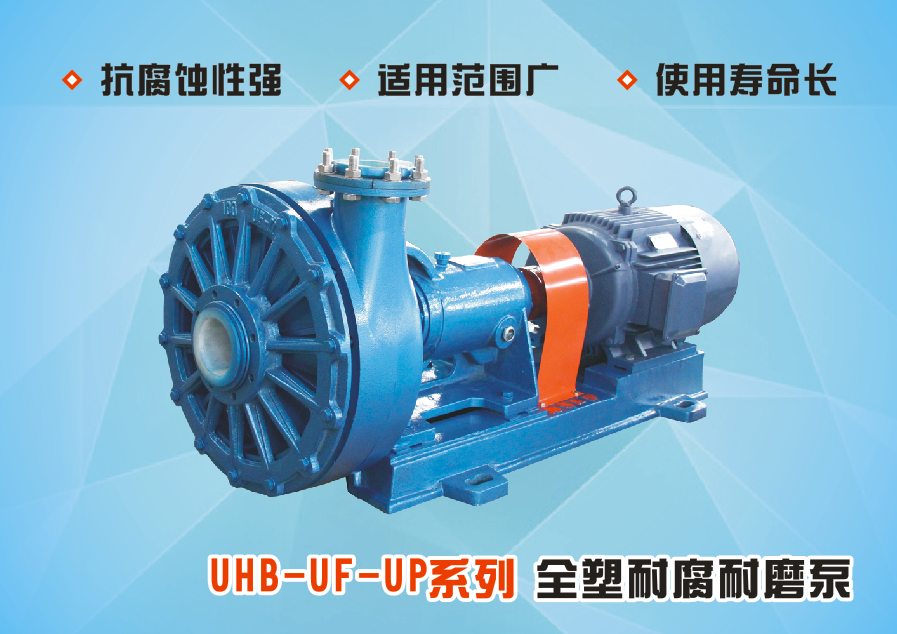

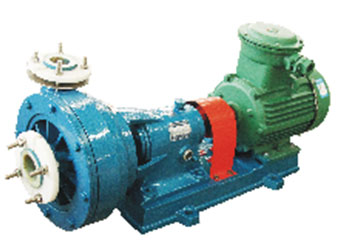

UHB-UF(UP)是一種內外全防腐的新型料漿泵。其中UF型采用改性超高分子量聚乙烯材質，UP型采用改性聚丙烯材質。
其結構為全塑內置增強裝置，內置增強裝置解決了以往全塑泵的拉伸易變形的特點。即保留了襯塑泵的堅固性，同時提高了外部的防腐蝕性及安裝方便的優點。（不適用輸送強氧化性酸和溶劑類介質。）
硫酸磷肥業：稀酸、母液、污水、含硅膠的氟硅酸、磷酸料漿等介質的輸送。
有色金屬冶煉業：特別適用于鉛、鋅、金、銀、銅、錳、鈷、稀土等濕法冶煉的各種酸液，腐蝕性礦漿，料漿 （壓濾機配用）電解液，污水等介質輸送。
化工及其他企業：各種硫酸、鹽酸、堿性、油類的清液或料漿崗位。鈦白粉、鐵紅粉生產，各種染料、顏料生產，
80 UHB - □ - █ - 60 - 30
50—— 進口直徑
UHB—— 耐腐泵代號
□—— UF-改性超高分子量聚乙烯 UP-改性聚乙烯
█—— Ⅱ-低轉速低揚程 M-低轉速高揚程
60—— 揚程
30—— 流量
| 序 | 型號 | 進/出口直徑 | 流量(m3/h) | 揚程 | 轉速(r/min) | 軸功率(KW) | 電機功率(KW) |
| 16 | 40UHB-UF-5-7.5 | 40X32 | 5 | 7.5 | 1450 | 0.25 | 0.75 |
| 17 | 40UHB-UF-8-7.5 | 40X32 | 8 | 7.5 | 1450 | 0.32 | 0.75 |
| 18 | 50UHB-UF-10-35 | 50X40 | 10 | 35 | 2900 | 3.2 | 4 |
| 19 | 50UHB-UF-20-20 | 50X40 | 20 | 20 | 2900 | 3 | 4 |
| 20 | 50UHB-UF-15-32 | 50X40 | 15 | 32 | 2900 | 3.5 | 5.5 |
| 21 | 50UHB-UF-20-30 | 50X40 | 20 | 30 | 2900 | 4.3 | 5.5 |
| 22 | 50UHB-UF-10-40 | 50X40 | 10 | 40 | 2900 | 4.3 | 5.5 |
| 23 | 50UHB-UF-15-40 | 50X40 | 15 | 40 | 2900 | 5.4 | 7.5 |
| 24 | 50UHB-UF-10-7.5 | 50X40 | 10 | 7.5 | 1450 | 1.1 | 2.2 |
| 25 | 65UHB-UF-30-25 | 65X50 | 30 | 25 | 2900 | 5.3 | 5.5 |
| 26 | 65UHB-UF-30-20 | 65X50 | 30 | 20 | 2900 | 5.1 | 5.5 |
| 27 | 65UHB-UF-30-32 | 65X50 | 30 | 32 | 2900 | 6.5 | 7.5 |
| 28 | 65UHB-UF-35-25 | 65X50 | 35 | 25 | 2900 | 6.2 | 7.5 |
| 29 | 65UHB-UF-15-7.5 | 65X50 | 15 | 7.5 | 2900 | 0.68 | 1.1 |
| 30 | 65UHB-UF-10-40 | 65X50 | 10 | 40 | 2900 | 4.2 | 5.5 |
| 31 | 65UHB-UF-20-50 | 65X50 | 20 | 50 | 2900 | 8.7 | 11 |
| 32 | 65UHB-UF-30-50 | 65X50 | 30 | 50 | 2900 | 12 | 15 |
| 33 | 65UHB-UF-30-40 | 65X50 | 30 | 40 | 2900 | 9.6 | 11 |
| 34 | 65UHB-UF-10-55 | 65X50 | 10 | 55 | 2900 | 8.6 | 11 |
| 35 | 65UHB-UF-20-425 | 65X50 | 20 | 45 | 2900 | 9.4 | 11 |
| 36 | 65UHB-UF-10-70 | 65X50 | 10 | 70 | 2900 | 8.4 | 11 |
| 37 | 65UHB-UF-15-70 | 65X50 | 15 | 70 | 2900 | 11.2 | 15 |
| 38 | 65UHB-UF-25-66 | 65X50 | 25 | 66 | 2900 | 15.8 | 18.5 |
| 39 | 65UHB-UF-30-60 | 65X50 | 30 | 60 | 2900 | 18.5 | 22 |
| 40 | 80UHB-UF-45-20 | 80X65 | 45 | 20 | 2900 | 10.2 | 11 |
| 41 | 80UHB-UF-35-45 | 80X65 | 35 | 45 | 2900 | 10.8 | 11 |
| 42 | 80UHB-UF-50-30 | 80X65 | 50 | 30 | 2900 | 10.2 | 11 |
| 43 | 80UHB-UF-40-35 | 80X65 | 40 | 35 | 2900 | 10.2 | 11 |
| 44 | 80UHB-UF-45-50 | 80X65 | 45 | 50 | 2900 | 14.8 | 15 |
| 45 | 80UHB-UF-60-30 | 80X65 | 60 | 30 | 2900 | 12.7 | 15 |
| 46 | 80UHB-UF-55-40 | 80X65 | 55 | 40 | 2900 | 15.8 | 18.5 |
| 47 | 80UHB-UF-20-75 | 80X65 | 20 | 75 | 2900 | 13.4 | 15 |
| 48 | 80UHB-UF-20-60 | 80X65 | 20 | 60 | 2900 | 10.3 | 15 |
| 49 | 80UHB-UF-25-70 | 80X65 | 25 | 70 | 2900 | 14.8 | 15 |
| 50 | 80UHB-UF-30-65 | 80X65 | 30 | 65 | 2900 | 18.2 | 22 |
| 51 | 80UHB-UF-35-65 | 80X65 | 35 | 65 | 2900 | 22.5 | 30 |
| 52 | 80UHB-UF-40-60 | 80X65 | 40 | 60 | 2900 | 22.6 | 30 |
| 53 | 80UHB-UF-II-20-11 | 80X65 | 60 | 28 | 1450 | 9.14 | 11 |
| 54 | 80UHB-UF-II-30-9 | 80X65 | 30 | 36 | 1450 | 5.88 | 7.5 |
| 55 | 80UHB-UF-11-25-10 | 80X65 | 40 | 60 | 1450 | 13.1 | 15 |
| 56 | 80UHB-UF-II-45-32 | 80X65 | 30 | 63 | 1450 | 10.3 | 15 |
| 57 | 80UHB-UF-II-50-30 | 80X65 | 50 | 55 | 1450 | 14.9 | 18.5 |
| 58 | 80UHB-UF-II-40-35 | 80X65 | 45 | 56 | 1450 | 13.7 | 15 |
| 59 | 80UHB-UF-II-60-28 | 80X65 | 60 | 40 | 1450 | 13 | 15 |
| 60 | 80UHB-UF-11-30-36 | 80X65 | 20 | 11 | 1450 | 1.2 | 2.2 |
| 61 | 80UHB-UF-M-40-60 | 80X65 | 30 | 9 | 1450 | 1.47 | 2.2 |
| 62 | 80UHB-UF-M-30-63 | 80X65 | 25 | 10 | 1450 | 1.36 | 2.2 |
| 63 | 80UHB-UF-M-50-55 | 80X65 | 45 | 32 | 1450 | 7.8 | 11 |
| 64 | 80UHB-UF-M-45-56 | 80X65 | 50 | 30 | 1450 | 8.16 | 11 |
| 65 | 80UHB-UF-M-60-40 | 80X65 | 40 | 35 | 1450 | 8.57 | 11 |
| 66 | 100UHB-UF-50-11 | 100X80 | 50 | 11 | 1450 | 4.2 | 5.5 |
| 67 | 100UHB-UF-60-10 | 100X80 | 60 | 10 | 1450 | 4.1 | 5.5 |
| 68 | 100UHB-UF-60-35 | 100X80 | 60 | 35 | 2900 | 14.5 | 18.5 |
| 69 | 100UHB-UF-100-20 | 100X80 | 100 | 20 | 2900 | 15 | 18.5 |
| 70 | 100UHB-UF-50-50 | 100X80 | 50 | 50 | 2900 | 17.5 | 18.5 |
| 71 | 100UHB-UF-60-40 | 100X80 | 60 | 40 | 2900 | 16.8 | 18.5 |
| 72 | 100UHB-UF-80-35 | 100X80 | 80 | 35 | 2900 | 17.8 | 22 |
| 73 | 100UHB-UF-80-30 | 100X80 | 80 | 30 | 2900 | 17.5 | 18.5 |
| 74 | 100UHB-UF-100-25 | 100X80 | 100 | 25 | 2900 | 17.9 | 22 |
| 75 | 100UHB-UF-120-15 | 100X80 | 120 | 15 | 2900 | 17.1 | 18.5 |
| 76 | 100UHB-UF-140-10 | 100X80 | 140 | 10 | 2900 | 16.4 | 18.5 |
| 77 | 100UHB-UF-50-60 | 100X80 | 50 | 60 | 2900 | 20.5 | 22 |
| 78 | 100UHB-UF-60-50 | 100X80 | 60 | 50 | 2900 | 22.8 | 30 |
| 79 | 100UHB-UF-70-45 | 100X80 | 70 | 45 | 2900 | 23.5 | 30 |
| 80 | 100UHB-UF-80-50 | 100X80 | 80 | 50 | 2900 | 28 | 30 |
| 81 | 100UHB-UF-100-40 | 100X80 | 100 | 40 | 2900 | 26.5 | 30 |
| 82 | 100UHB-UF-II-80-32 | 100X80 | 80 | 32 | 1450 | 18.7 | 22 |
| 83 | 100UHB-UF-II-100-30 | 100X80 | 100 | 30 | 1450 | 15.7 | 18.5 |
| 84 | 100UHB-UF-II-120-25 | 100X80 | 120 | 25 | 1450 | 13.1 | 15 |
| 85 | 100UHB-UF-II-60-35 | 100X80 | 60 | 35 | 1450 | 12.3 | 15 |
| 86 | 100UHB-UF-II-70-33 | 100X80 | 70 | 33 | 1450 | 12.1 | 15 |
| 87 | 100UHB-UF-M-60-65 | 100X80 | 60 | 65 | 1450 | 33.6 | 37 |
| 88 | 100UHB-UF-M-50-70 | 100X80 | 50 | 70 | 1450 | 31.4 | 37 |
| 89 | 100UHB-UF-M-80-60 | 100X80 | 80 | 60 | 1450 | 30.9 | 37 |
| 90 | 100UHB-UF-M-80-50 | 100X80 | 80 | 50 | 1450 | 30.3 | 37 |
| 91 | 100UHB-UF-M-100-60 | 100X80 | 100 | 60 | 1450 | 47.8 | 55 |
| 92 | 100UHB-UF-M-120-60 | 100X80 | 120 | 60 |
